PRODUCTS - MARINE REVERSE OSMOSIS

I have been building RO units suitable for liveaboards with capacities from 300 l/h to 450 l/h. The units are suitable for boats carrying ten to thirty guests and crew.

RO units are dimensioned and built according to system design guidelines from Dow FILMTEC Technical Manual 1

Features

Unit comes equipped with:

  • Media filtration, with 5-way valve allowing filter backwash and rinsing. Thus extending cartridge change interval by at least 10x.

  • Automatic Alarm/shutdown in case of low feed pressure due to congested filters, foreign matter sucked into raw water intake or feed pump failure.

  • Automatic pump speed control, slowing the high pressure pump in case of exceeding the HP side pressure limit (If pressure control valve closed to far).

  • Automatic Alarm/shutdown in case of sudden pressure increase

  • Panel mounted Inverter control keypad with extensive monitoring (Run Hrs, Power usage, Temperatures, HP pump torque level and RPM, Motor current, etc.)

  • Panel mounted Digital TDS ppm, Feed Temperature and conductivity meter.

  • Y-valve for manual fresh water flush.

Performance

Performance data calculation (of real finished project) and the overview for same unit:

No of elements 3-Stage 2-Stage
Raw Water Feed flow 1800lph 1800lph
Feed Pressure 46bar 44bar
Product Water Flow 420lph 300lph
Product Recovery 23% 17%
Average flux 19lmh 20lmh
Power required 2.9kW 2.7kW
Specific Energy 6.8kWh/m³ 9.2kWh/m³
Average TDS 298ppm 267ppm

Construction Details

  • Heavy duty SS316L 30l/min 100bar triplex plunger pump with hollow shaft direct coupling

  • Alliance 4kW 3phase 1450rpm motor with SKF bearings

  • PENTAIR (made in Australia ) feed pump with strainer

  • PENTAIR - Codeline FRP membrane vessels 4” x 40”

  • Dow Filmtech SW30-4040 membranes

  • Feed water pre-treatment:

    1. Strainer
    2. Media filtration (sand/anthracite) high flow (>10 ton/hr )
    3. Twin BIG/JUMBO 4.5” x 20” cartridge filters

  • LP and HP stainless SS316L pressure gauges

  • Permeate & concentrate flow meters

  • Digital TDS meter

  • High pressure fittings SS 316L

  • Manual fresh water flush operation with Y-valves

  • Low feed pressure cutoff switch (< 0.8bar)

  • Over-pressure protection (60bar on HP side)

  • Electrical control panel with 4kW AC inverter drive (ABB ACS)

Service

I keep stock of parts and are able to service the unit myself.

Inquiry

Please contact me for further information.

Installation showcase

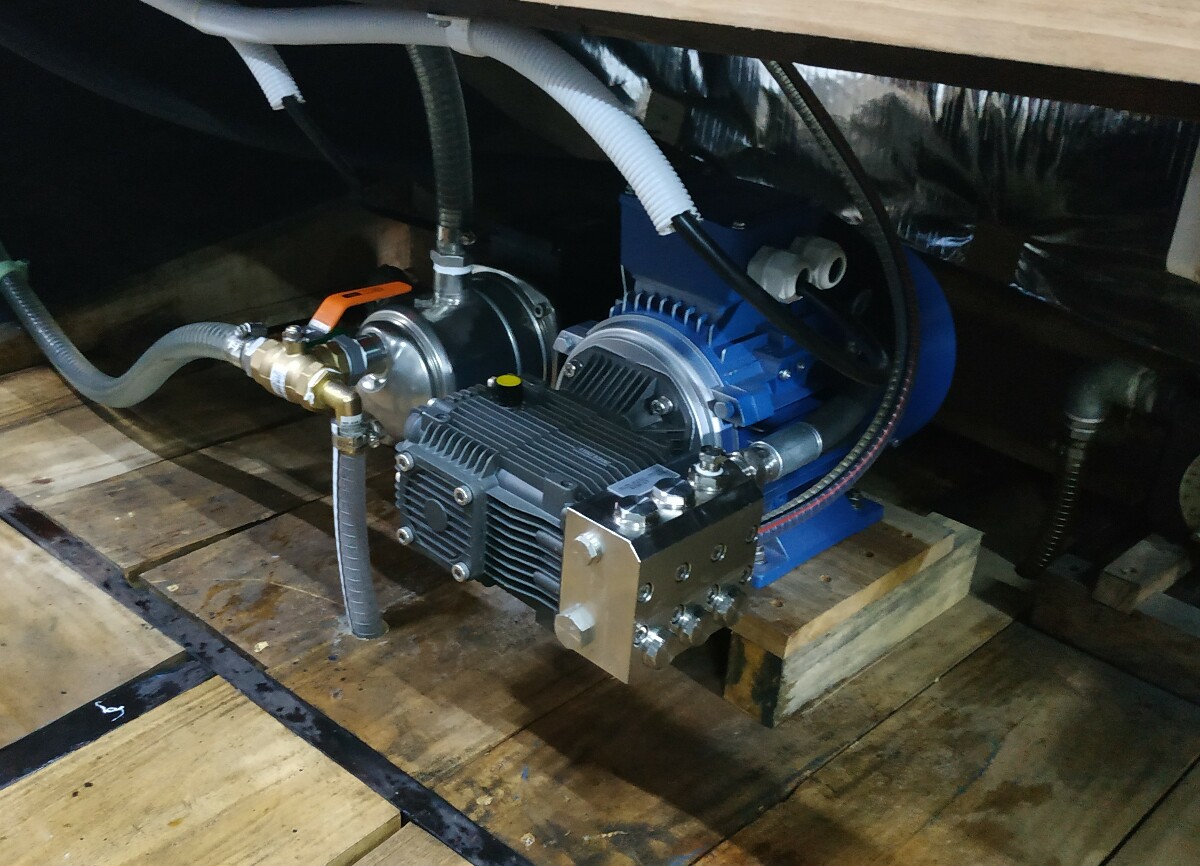

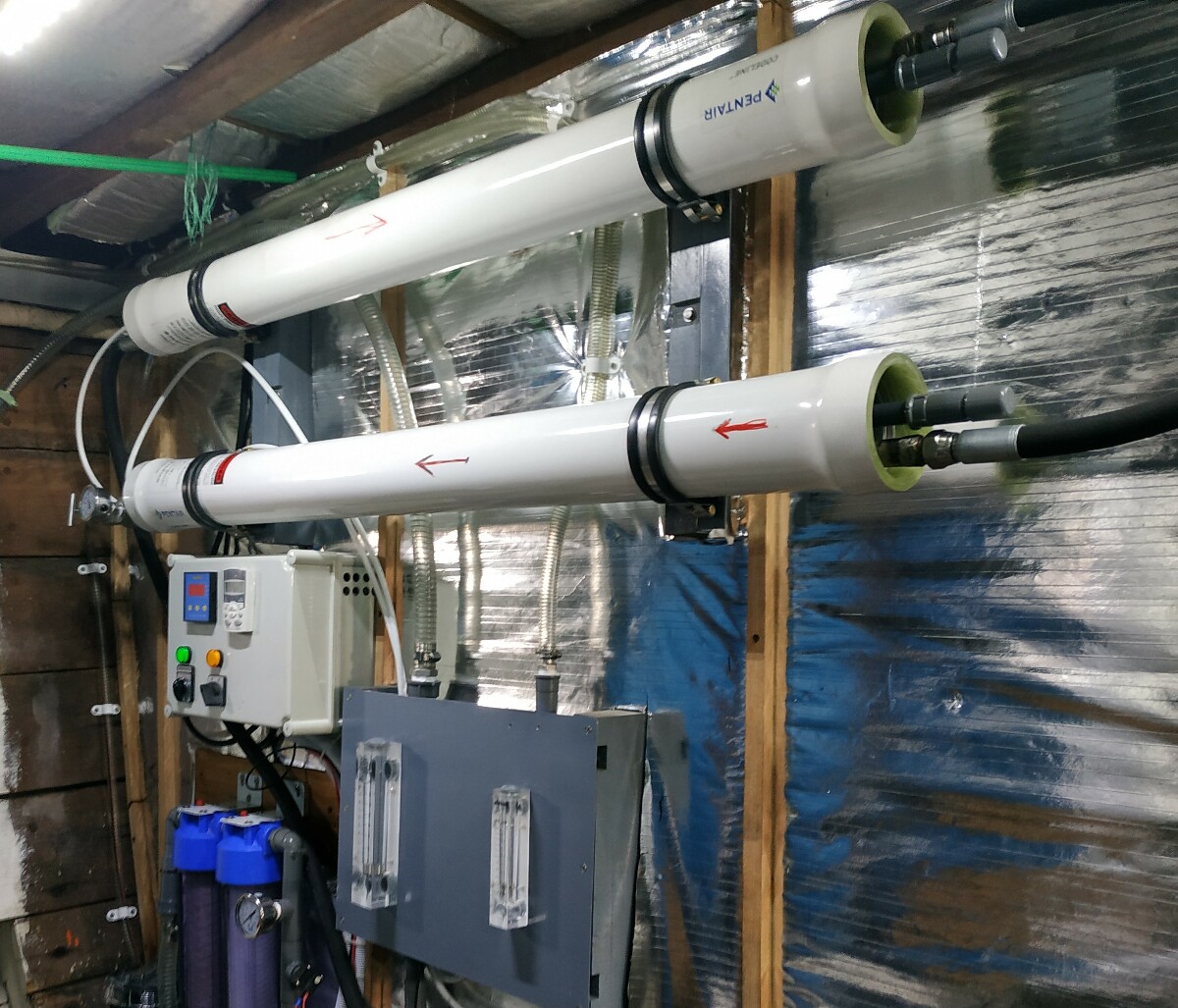

Watermaker installation on sailing boat Jakare
Watermaker installation on sailing boat Jakare Watermaker installation on sailing boat Jakare

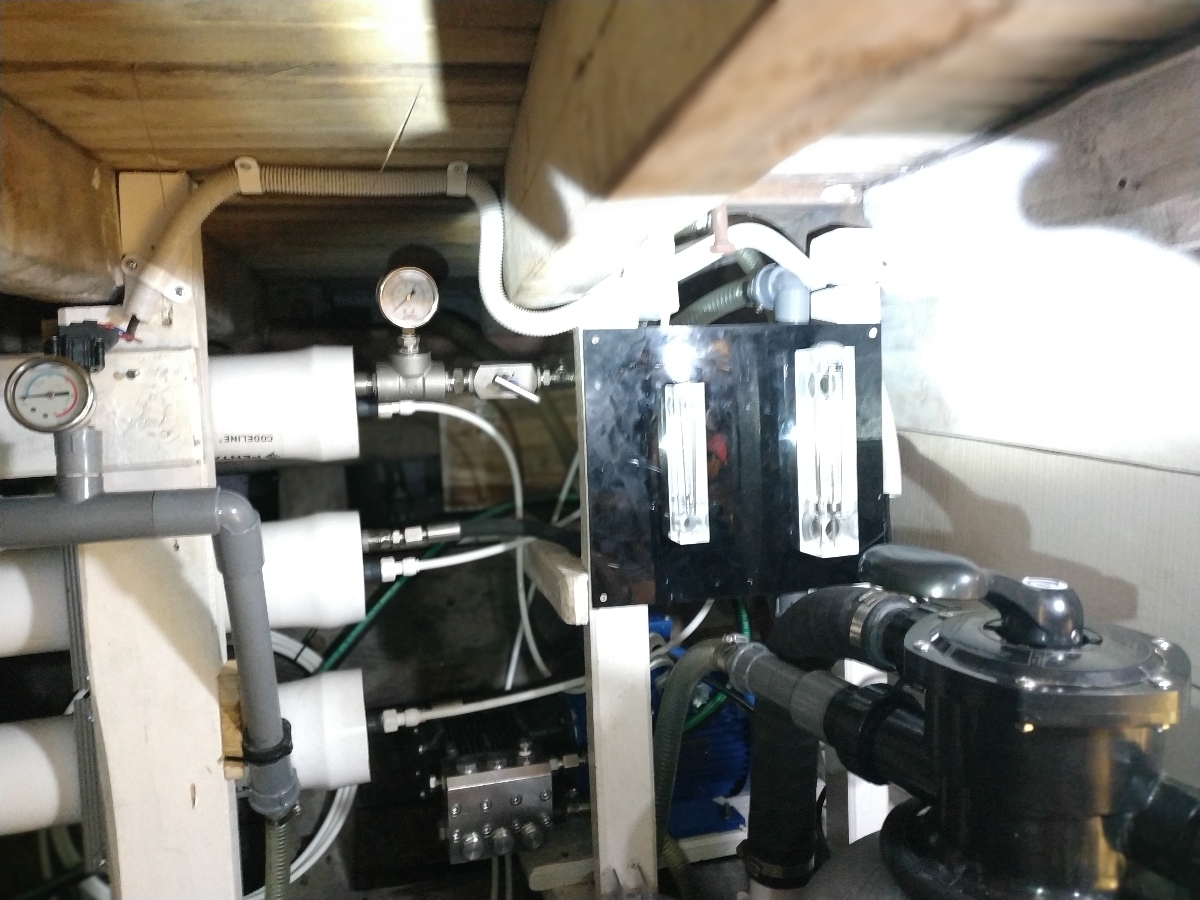

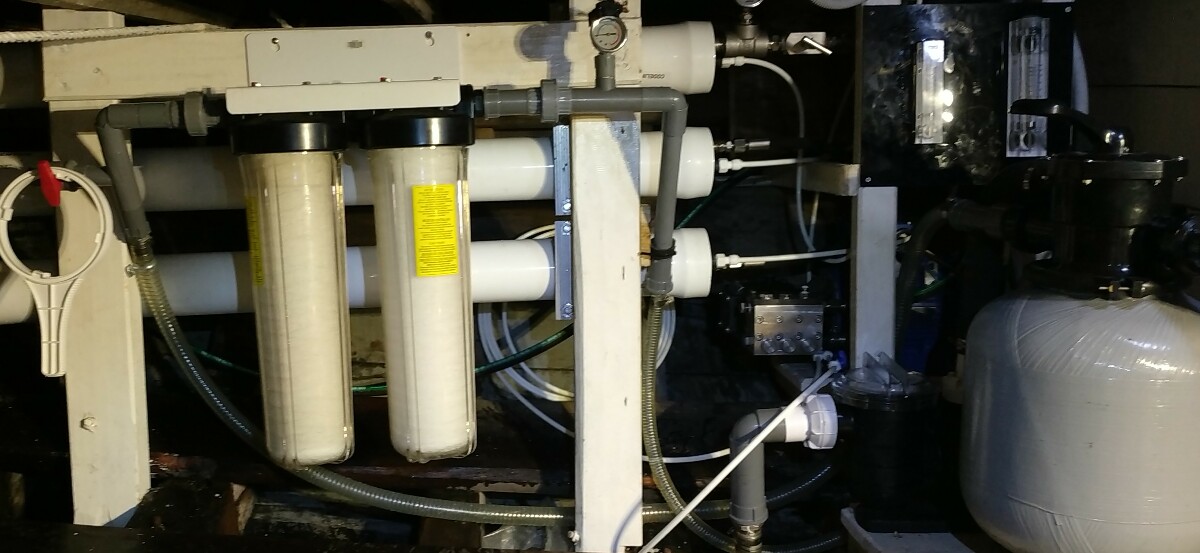

Seawater desalination unit on liveaboard vessel Gamara
Seawater desalination unit on liveaboard vessel Gamara Seawater desalination unit on liveaboard vessel Gamara

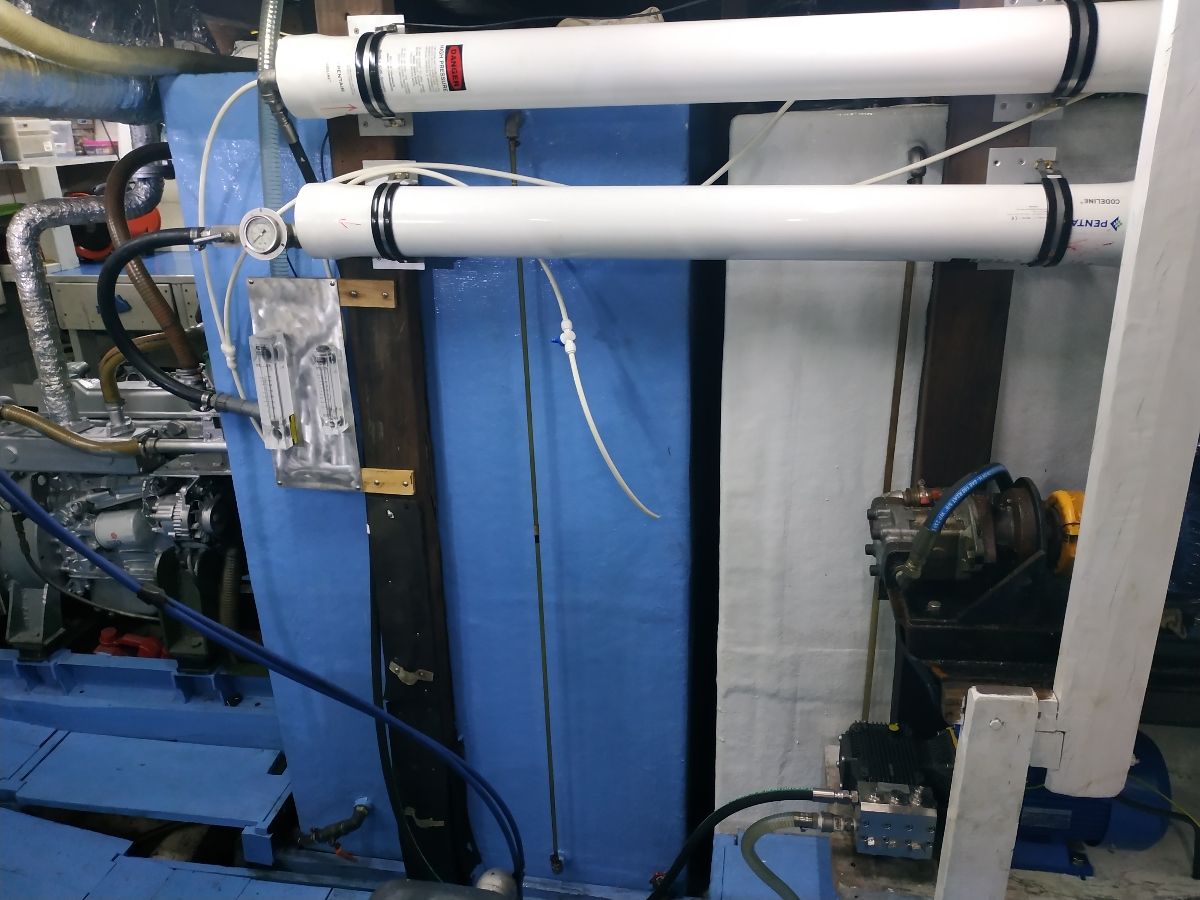

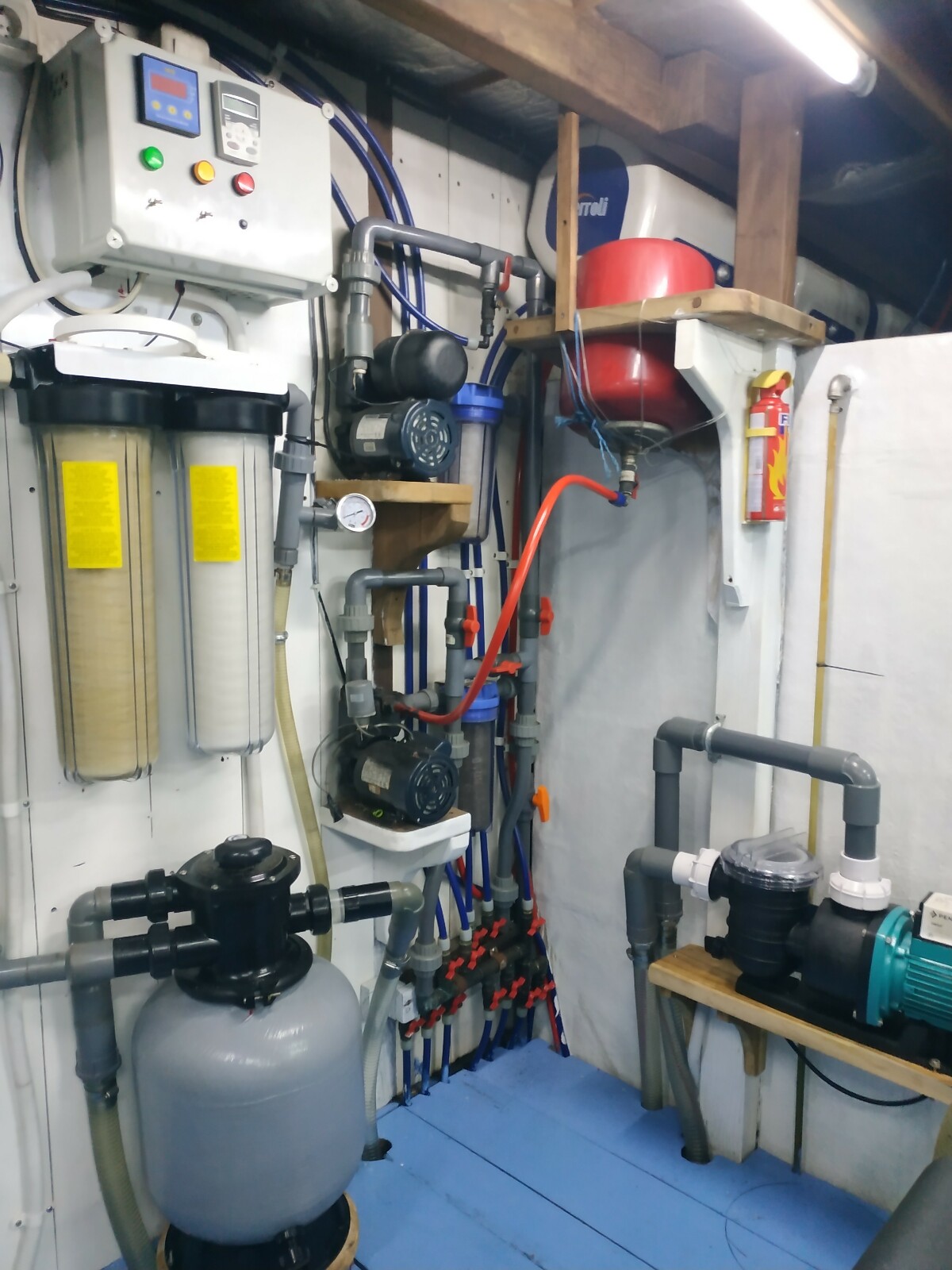

Seawater RO unit on pinisi yacht Teman
Seawater RO unit on pinisi yacht Teman Seawater RO unit on pinisi yacht Teman

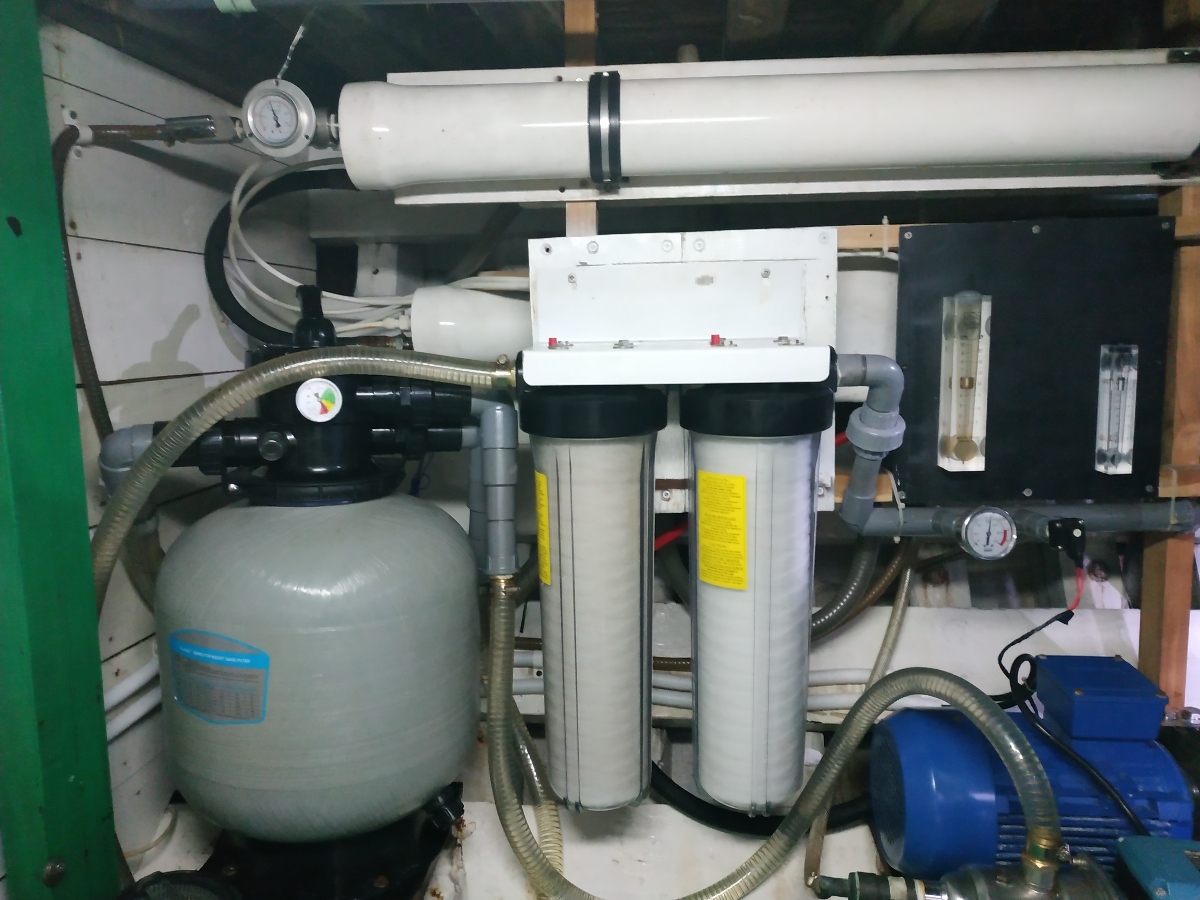

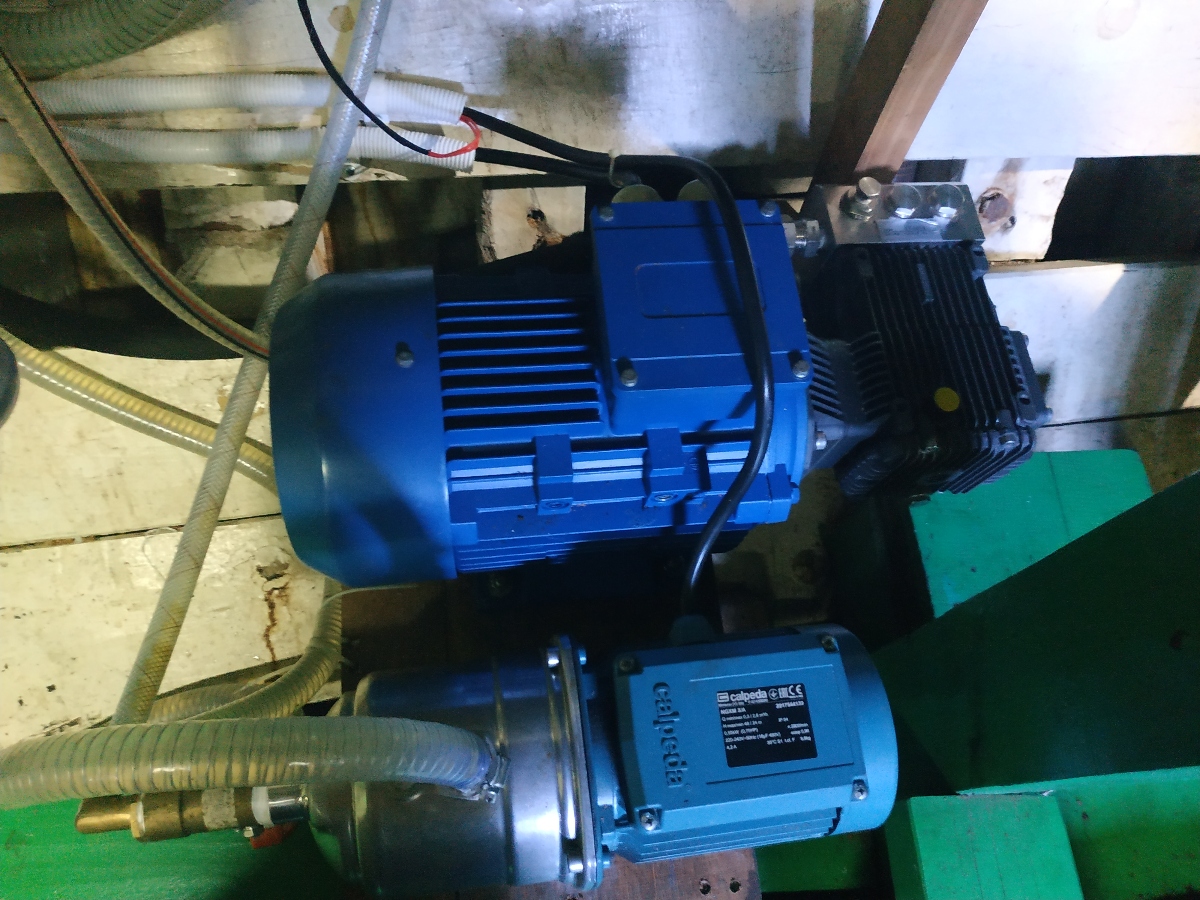

Marine watermaker unit on liveaboard vessel Mari
Marine watermaker unit on liveaboard vessel Mari Marine watermaker unit on liveaboard vessel Mari

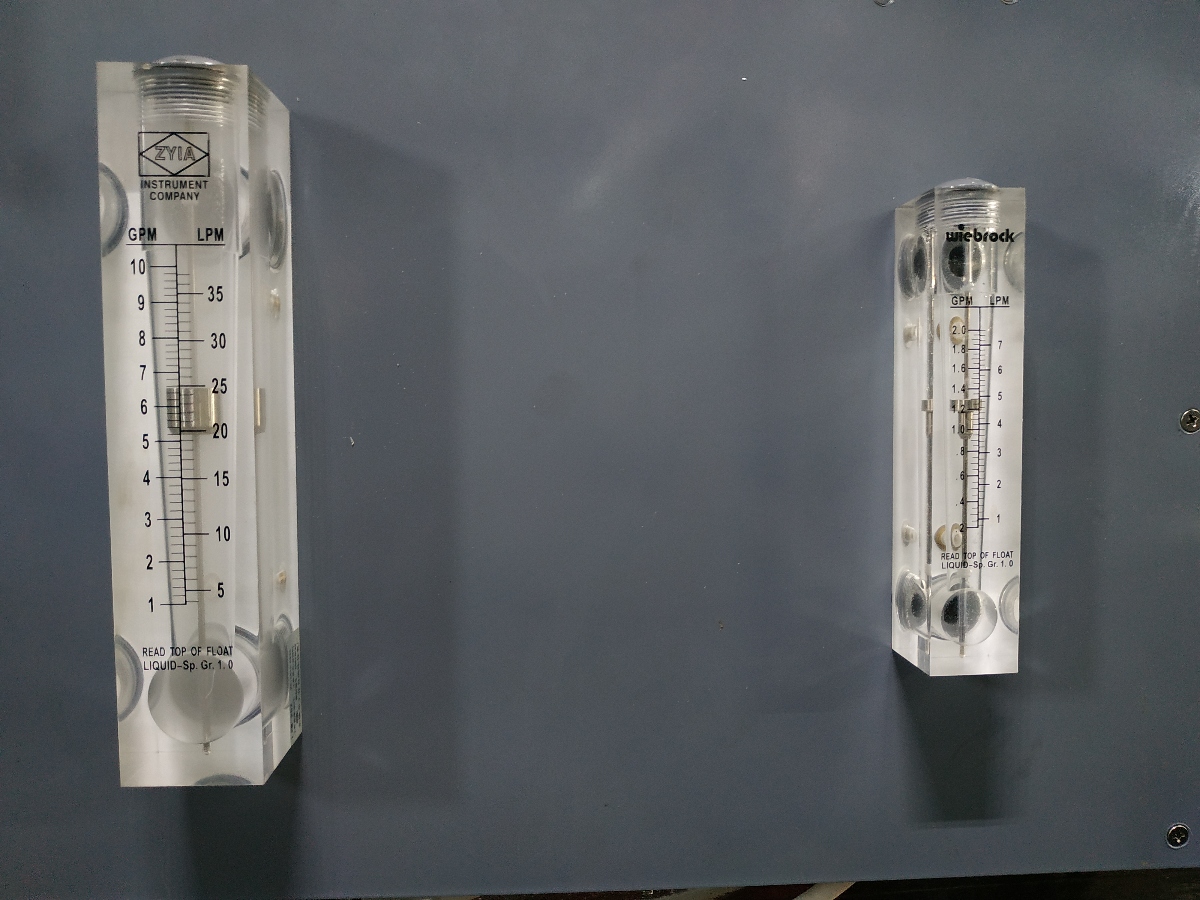

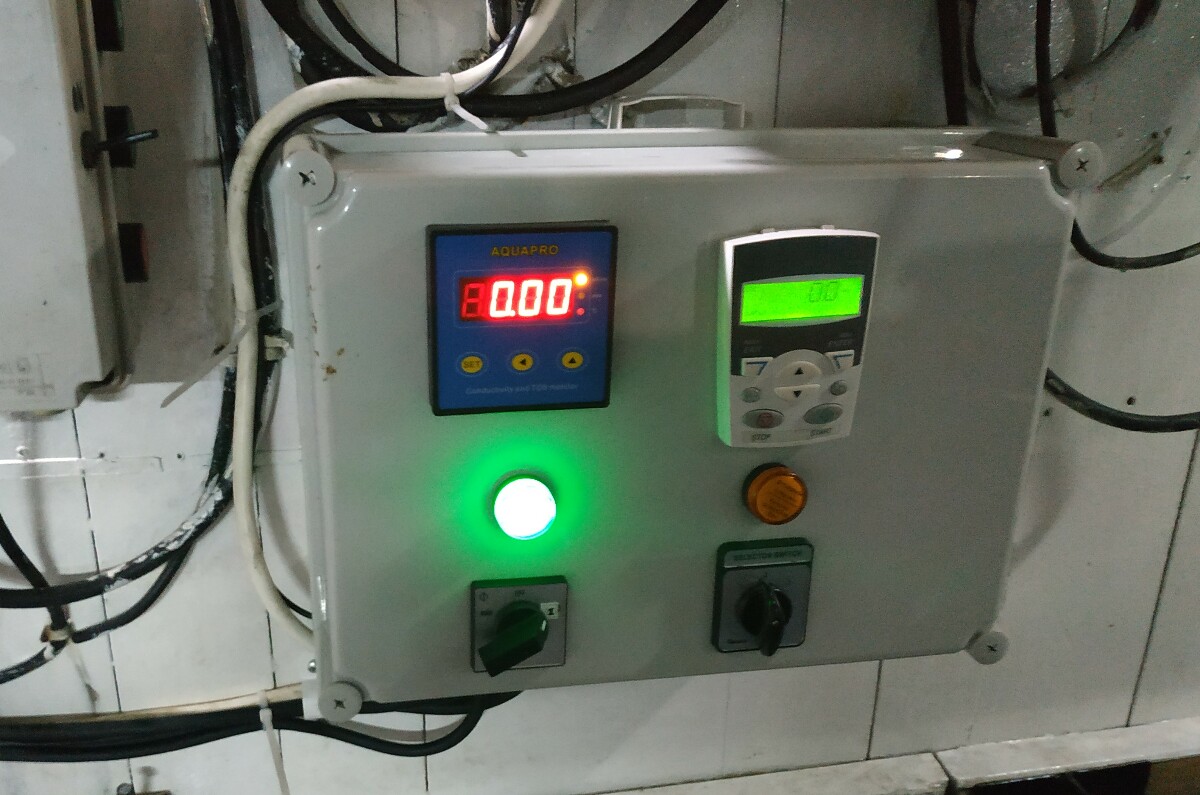

Reverse osmosis unit on liveaboard yacht Amira
Reverse osmosis unit on liveaboard yacht Amira Reverse osmosis unit on liveaboard yacht Amira

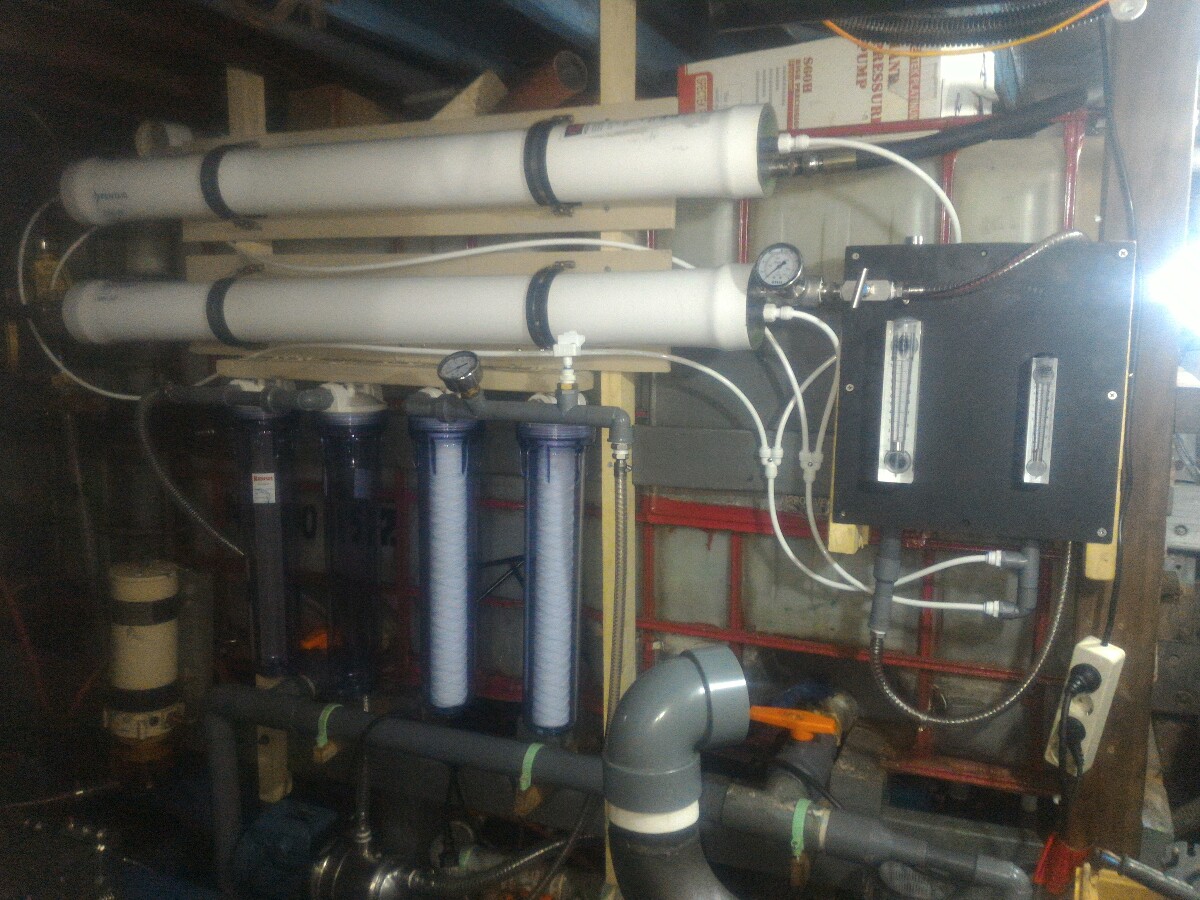

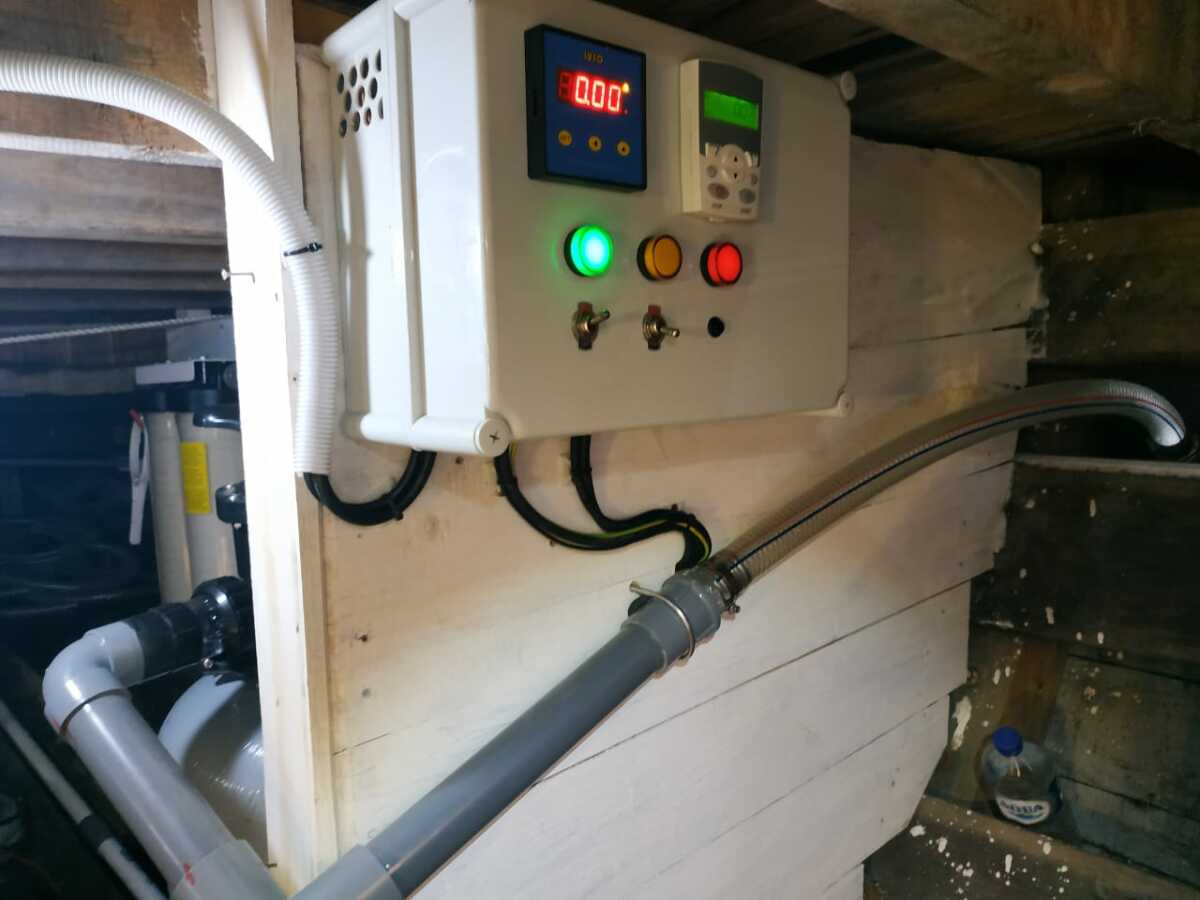

Marine reverse osmosis unit on sailing boat Nataraja
Marine reverse osmosis unit on sailing boat Nataraja Marine reverse osmosis unit on sailing boat Nataraja
